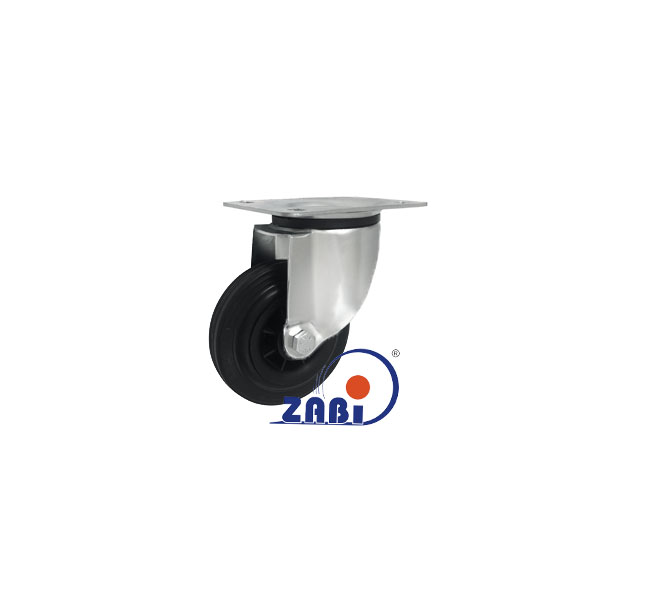

Wheels and sets of wheels, Plastic-and-rubber wheels, Plastic-and-rubber wheels in swivelling housings with symbol 22T

Wheels and sets of wheels, Plastic-and-rubber wheels, Plastic-and-rubber wheels in swivelling housings with symbol 22T
Wheels and sets of wheels, Plastic-and-rubber wheels, Plastic-and-rubber wheels in swivelling housings with symbol 22T

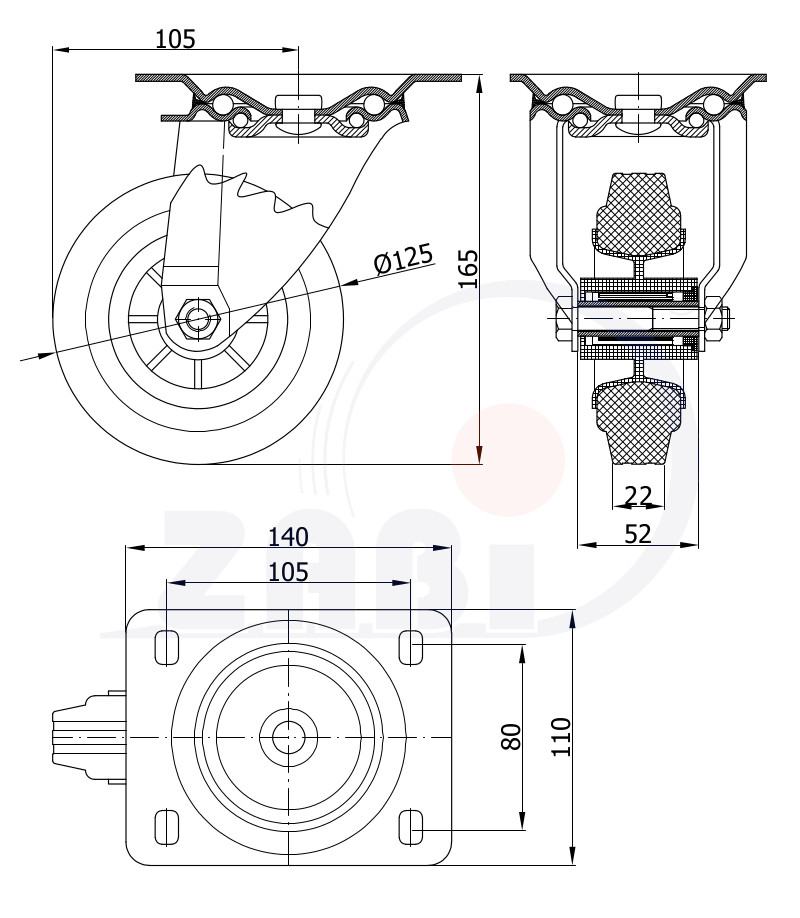

Wheels and sets of wheels, Plastic-and-rubber wheels, Plastic-and-rubber wheels in swivelling housings with symbol 22T 3D
Wheel diameter [mm] : 125
Wheel width [mm] : 22
Total height [mm] : 168
Load capacity [kg] : 80
Set/wheel weight [kg] : 1.48
Bolt hole spacing [mm] : 80x105 ø10
Offset [mm] : 100
  Bearing type : Roller bearing

Produkty podobne

20T
Symbol: 20T
22MT
Symbol: 22MT
22MT9
Symbol: 22MT9
22MTS
Symbol: 22MTS
22MTS9
Symbol: 22MTS9
22T9
Symbol: 22T9
22TS
Symbol: 22TS
22TS9
Symbol: 22TS9

Produkty dla średnicy

Symbol Bearing type Bearing number
22T Zobacz produkt 22 168 80 1.48 80x105 ø10 100 Roller bearing L-35
22MT Zobacz produkt 22 158 80 1.25 50-60x80 ø10 110 Roller bearing L-35
22MT9 Zobacz produkt 22 158 80 1.25 50-60x80 ø10 110 Plain bearing -
22T9 Zobacz produkt 22 168 80 1.48 80x105 ø10 100 Plain bearing -
22TS9 Zobacz produkt 22 168 80 1.48 80x105 ø10 100 Plain bearing -
22MTS9 Zobacz produkt 22 158 80 1.25 50-60x80 ø10 110 Plain bearing -
22MTS Zobacz produkt 22 158 80 1.25 50-60x80 ø10 110 Roller bearing L-35
22TS Zobacz produkt 22 168 80 1.48 80x105 ø10 100 Roller bearing L-35
