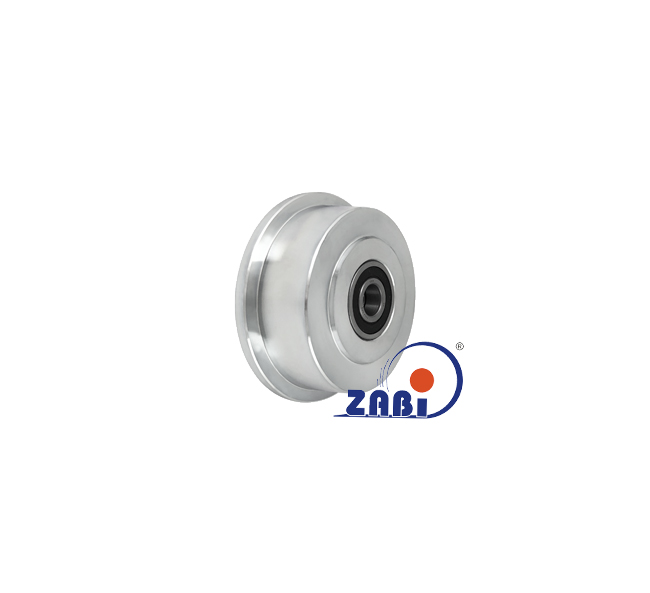

Wheels and sets of wheels, Flange wheels made of cast steel, Flange wheels made of cast steel with symbol V30

Wheel diameter [mm] : 145

Hub aperture [mm] : 20

Hub length [mm] : 52

Wheel width [mm] : 36

Load capacity [kg] : 1400

Set/wheel weight [kg] : 4.50

  Bearing type : Ball bearing
