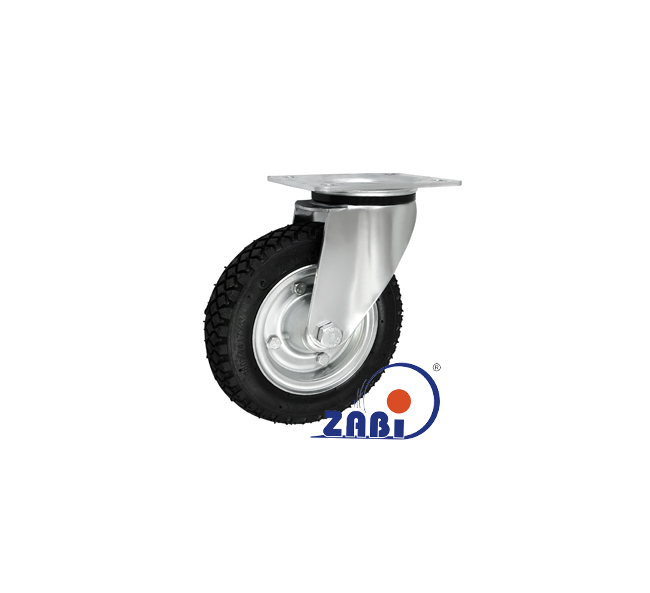

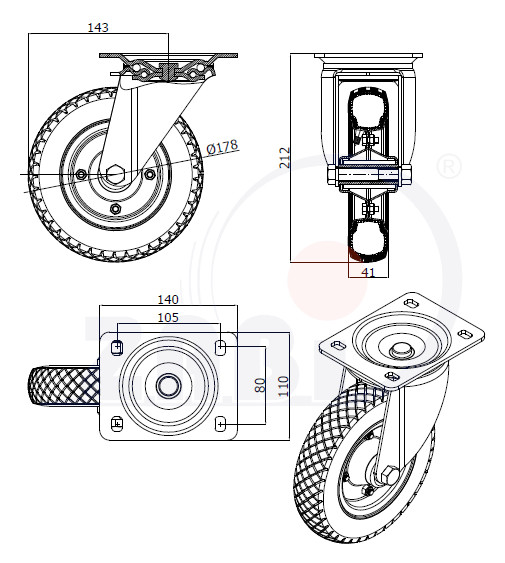

Symbol: 1752M

Wheel diameter [mm]: 175

Wheel width [mm]: 40

Total height [mm]: 213

Load capacity [kg]: 100

Set/wheel weight [kg]: 2.20

Bolt hole spacing [mm]: 80x105 ø10

Offset [mm]: 145

Bearing type: Roller bearing

Symbol							Bearing type	Bearing number
1752MS Zobacz produkt	40	213	100	2.20	80x105 ø10	145	Roller bearing	L-55
1752M Zobacz produkt	40	213	100	2.20	80x105 ø10	145	Roller bearing	L-55
1752ŁS Zobacz produkt	40	213	80	2.10	80x105 ø10	145	Ball bearing	6001
1752Ł Zobacz produkt	40	213	80	2.10	80x105 ø10	145	Ball bearing	6001
