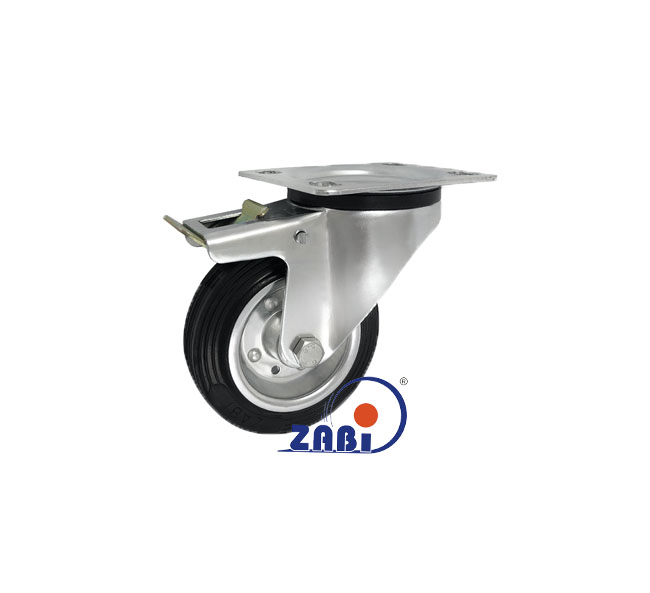

Symbol: 15H

Wheel diameter [mm]: 100

Wheel width [mm]: 20

Total height [mm]: 130

Load capacity [kg]: 70

Set/wheel weight [kg]: 0.93

Bolt hole spacing [mm]: 50-60x80 ø10

Offset [mm]: 100

Bearing type: Roller bearing

	Symbol							Bearing type	Bearing number
	15SH Zobacz produkt	20	130	70	0.93	50-60x80 ø10	100	Roller bearing	L-34
	15H Zobacz produkt	20	130	70	0.93	50-60x80 ø10	100	Roller bearing	L-34
