Symbol:

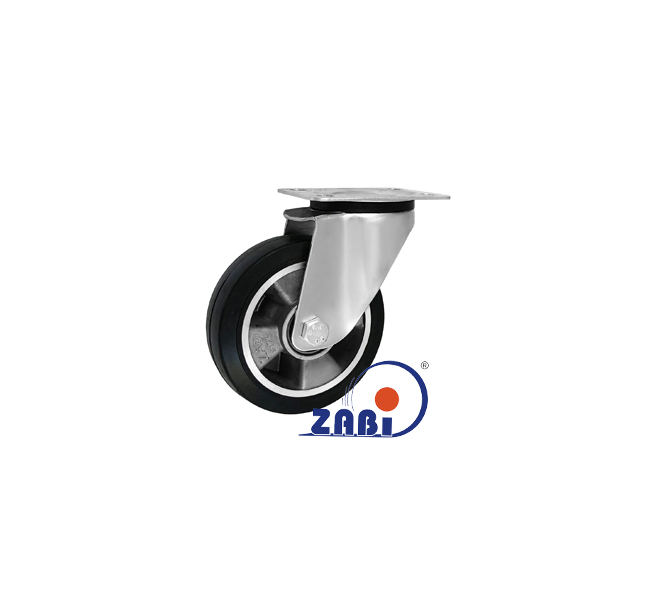

A22MG
Wheel diameter [mm]: 125
Wheel width [mm]: 36
Total height [mm]: 158
Load capacity [kg]: 100
Set/wheel weight [kg]: 1.40
Bolt hole spacing [mm]: 50-60x80 ø10
Offset [mm]: 98
Bearing type: Ball bearing
Produkty podobne
Symbol: A22G
Symbol: A22GS
Symbol: A22GSW
Symbol: A22GW
Symbol: A22MGS
Symbol: A12G
Symbol: A12GW
Symbol: A42G
Produkty dla średnicy
Symbol
Bearing type
Bearing number
A22MG
Zobacz produkt
36
158
100
1.40
50-60x80 ø10
98
Ball bearing
6202
A22MGS
Zobacz produkt
36
158
100
1.40
50-60x80 ø10
98
Ball bearing
6202
A22G
Zobacz produkt
36
166
200
1.72
80x105 ø10
100
Ball bearing
6202
A22GS
Zobacz produkt
36
166
200
1.64
80x105 ø10
100
Ball bearing
6202
A22GW
Zobacz produkt
36
165
200
1.30
60x80 ø8
117
Ball bearing
6202
A22GSW
Zobacz produkt
36
165
200
1.85
60x80 ø8
117
Ball bearing
6202
×
