Aluminium wheels
»

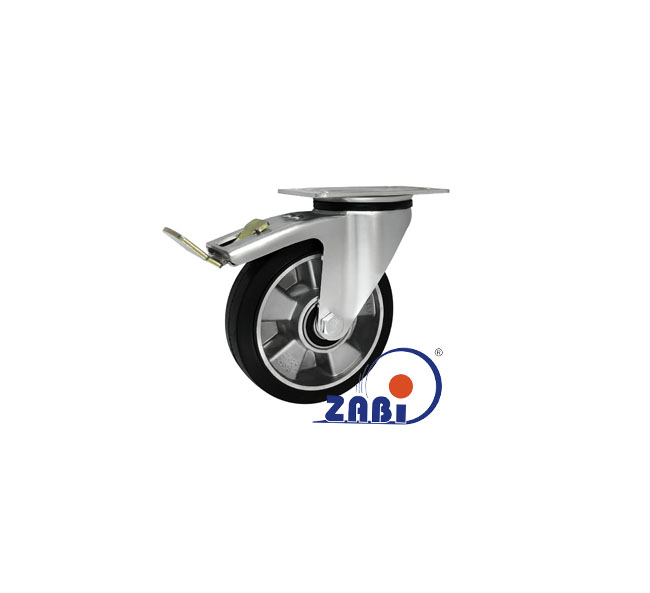

in swivelling housings with top brake
»
A45GWH
Kategorie
Kategorie
Wheels and sets of wheels
Metal-and-rubber wheels
Plastic-and-rubber wheels
Wheels for mowers
Plastic wheels
Polypropylene wheels
Plastic wheels (polyamide + polyurethane)
Plastic (Material) wheels made of stainless steel
Aluminium-and-polyurethane wheels
Aluminium wheels
Aluminium wheels, aluminium-and-rubber wheels
Aluminium wheels in swivelling housings
in swivelling housings with top brake
Aluminium wheels in steady housings
Aluminium wheels in housings with arbor
in housings with hole with brake
Furniture wheels
Double Plastic wheels - tandem
Inner tubes, tyres
Pneumatic wheels
Foam filled tyres
Wheels of high temperature resistance
Flange wheels made of cast steel
Scaffotl castors (with pipe)
Scaffotl castors (with regulation)
Plastic wheels (polyamide) for high loads
Cast iron wheels for high loads
Aluminium-and- polyurethane wheel for high loads
Cast iron wheels with polyurethane for high loads
Plastic wheels in swivelling housings for high loads
Cast iron wheels with polyurethane in steady housings for high loads
Wheel parts and accessories
Plastic and metal rollers
Carriages and gate accessories
Zobacz wszystkie
Symbol:
A45GWH

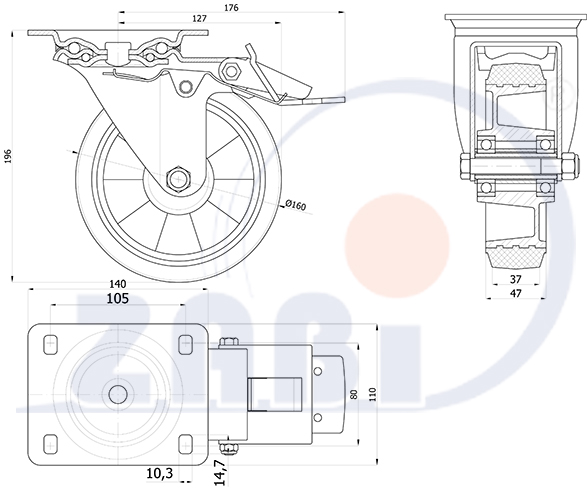

Wheel diameter [mm]: 160
Wheel width [mm]: 38
Total height [mm]: 197
Load capacity [kg]: 300
Set/wheel weight [kg]: 3.03
Bolt hole spacing [mm]: 80x105 ø10
Offset [mm]: 185
Bearing type: Ball bearing
Produkty podobne
Symbol: A45GH
Symbol: A45GSH
Symbol: A45GSWH
Symbol: A15GH
Symbol: A15GWH
Symbol: A25GH
Symbol: A25GSH
Symbol: A25GSWH
Produkty dla średnicy
Symbol
Bearing type
Bearing number
A45GH
Zobacz produkt
38
197
250
2.83
80x105 ø10
142
Ball bearing
6204
A45GSH
Zobacz produkt
38
197
250
2.83
80x105 ø10
142
Ball bearing
6204
A45GSWH
Zobacz produkt
38
197
300
3.10
80x105 ø10
185
Ball bearing
6204
A45GWH
Zobacz produkt
38
197
300
3.03
80x105 ø10
185
Ball bearing
6204
×
