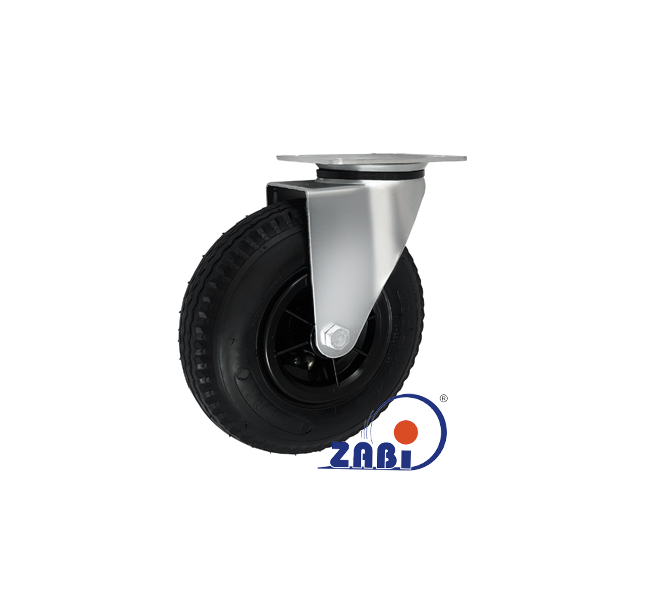

Pneumatic wheels, Pneumatic wheels, Pneumatic tyre wheels in swivelling housings with symbol 2252

Wheel diameter [mm] : 225

Wheel width [mm] : 70

Total height [mm] : 257

Load capacity [kg] : 95

Set/wheel weight [kg] : 2.55

Bolt hole spacing [mm] : 80x105 ø10

Offset [mm] : 180

  Bearing type : Roller bearing

Produkty podobne

Symbol: 2252D

Symbol: 2252M

Symbol: 2252MD

Symbol: 2252MŁ

Symbol: 2252MŁD

Symbol: 2252ŁKX4

Symbol: 1752M

Symbol: 1752MS

Produkty dla średnicy

	Symbol							Bearing type	Bearing number	Other
	2252 Zobacz produkt	70	257	95	2.55	80x105 ø10	180	Roller bearing	L-55
	2252ŁKX4 Zobacz produkt	70	257	95	2.50	80x105 ø10	180	Ball bearing	6001
	2252M Zobacz produkt	70	257	95	3.20	80x105 ø10	180	Roller bearing	L-70
	2252MŁ Zobacz produkt	70	257	95	3.50	80x105 ø10	180	Ball bearing	6004
	2252D Zobacz produkt	70	255	95	2.55	75x85 ø10	170	Roller bearing	L-55
	2252MŁD Zobacz produkt	70	255	95	3.50	75x85 ø10	170	Ball bearing	6004
	2252MD Zobacz produkt	70	255	95	3.50	75x85 ø10	170	Roller bearing	L-70
